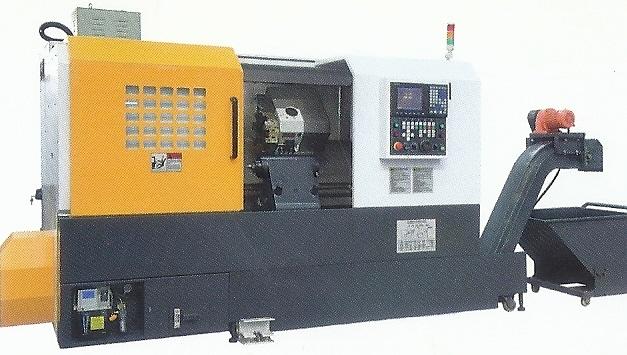

【General CNC Turning Machine , 일반 CNC 자동선반】
♣특징
1.전면 보호 설계로 외관 조형미가 뛰어나고 조작과 수리가 편리합니다.
2.일체식 45도 경사진 베드(Machine Bed)의 고강성(High Stiffness) 구조로
가공 부산물의 배출 및 배수가 용이하고 누수방지(Leakproof) 기능이 우수합니다.
3.X축,Z축 최대이동속도 20 M/min.
4.주축(Spindle)은 고속의 고강성(High Stiffness)구조이며 무단변속(Stepless Speed Change)
기능으로 끝김없는 빠른 절삭 및 고속 절삭을 가능하게 합니다.
♣General CNC Turning Machine 세부사양
Process Range |
Turning Diameter of Bed |
460mm |
Process Range |
Maximum Turning Diameter |
260mm |
Process Range |
stander Turning Diameter |
200mm |
Travel of Tool Slide |
Maximum Vertical Travel
(Z axis) |
520mm |
Travel of Tool Slide |
Maximum Horizontal Travel
(X axis) |
140+20mm |
Spindle |
The Maximum Spindle
Speed |
4000 r/min |
Spindle |
The Former Bearing Joumal |
100mm |
Spindle |
Spindle Hole Diameter |
62mm |
Spindle |
Spindle Head Size |
A6 |
Spindle |
Hhough Hole Diameter |
52mm |
Spindle |
Spindle to Ground Height |
1000mm |
Spindle |
Hydraulic Chuck |
8" |
Tailstock |
Tailstock Tralve |
420mm |
|
|
80mm |
|
Sleeve Tralve |
80mm |
Feed System |
Rapid Traverse Speeds(X/Z) |
X축 : 20 m/min
Z축 : 20 m/min |
|
The Minimum Amount of
Movement (X/Z) |
X축 : 0.0005mm
Z축 : 0.001mm |
Holder |
Setting Holder Quantity |
8 |
Holder |
Holder Size |
25*25mm, 32mm |
Cooling BTA Protection
System |
Cooling Water Pump |
200W, 양정(head) 10M,
유량(traffic) 40L/min |
Cooling BTA Protection
System |
Chip Removal System |
after the BTA automatic
divice + chip truck |
Cooling BTA Protection
System |
Protection System |
full closure of large shield |
Accuracy |
Positioning Accuracy(X/Z) |
X축 : 0.01mm
Z축 : 0.015mm |
Accuracy |
Repeat Positioning
Accuracy(X/Z) |
X축 : 0.005mm
Z축 : 0.007mm |
Hydraulic Lubrication
System |
|
timing quantitative
automatic lubrication |
Machine Dimension(L*W*H) |
|
2370*1440*1670 |
Machine Weight |
|
4500kg |
